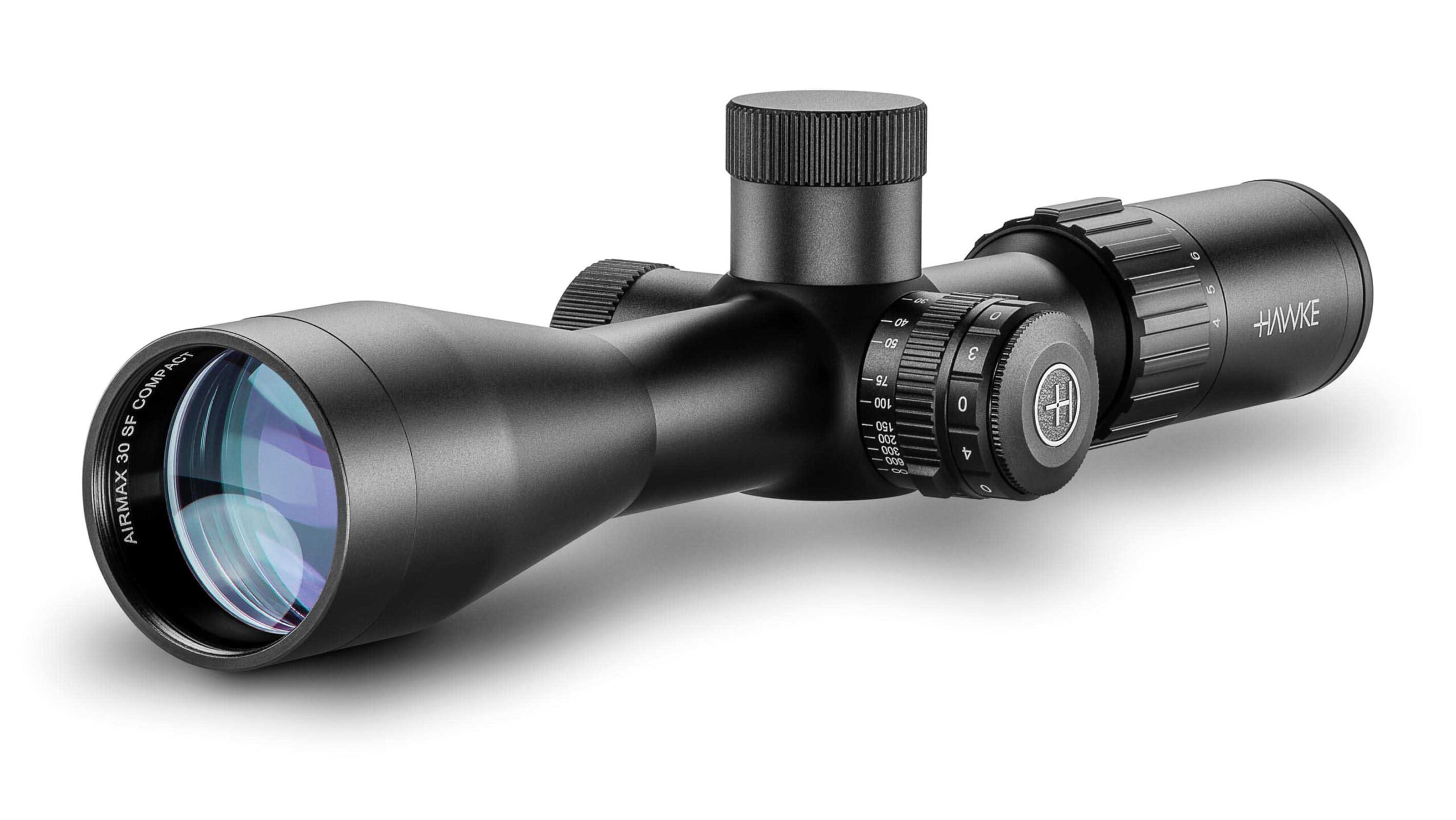

Airmax 30 SF Compact 4-16×44 AMX IR
£360.00
1 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
- Capped Target Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Magnification
4 – 16x
Reticle
AMX IR
Optical System
System H2
Objective Lens
44mm
Parallax
Side Focus
Focal Plane
SFP (Second Focal Plane)
Scope Tube
30mm
Illumination
6 Levels (Red)
Field of View
32.8 – 8.2ft @100yds
10.9 – 2.7m @100m
Field of View
6.3 – 1.6°
Eye Relief
3in
76mm
PX/Focus (Error free from)
10yds – ∞
9m – ∞
Exit Pupil
0.43 – 0.11″
11 – 2.8mm
Click Value
1/10 MRAD
Elevation Turret Clicks (max)
20 MRAD
Windage Turret Clicks (max)
20 MRAD
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated – 16 Layers
Length
11.7in
296mm
Weight
21.9oz
621g
Turret Type (Elevation)
Target. Capped. Resettable
Turret Type (Windage)
Target. Capped. Resettable
Illumination Control
Stepped Rheostat with Off Positions In-between
