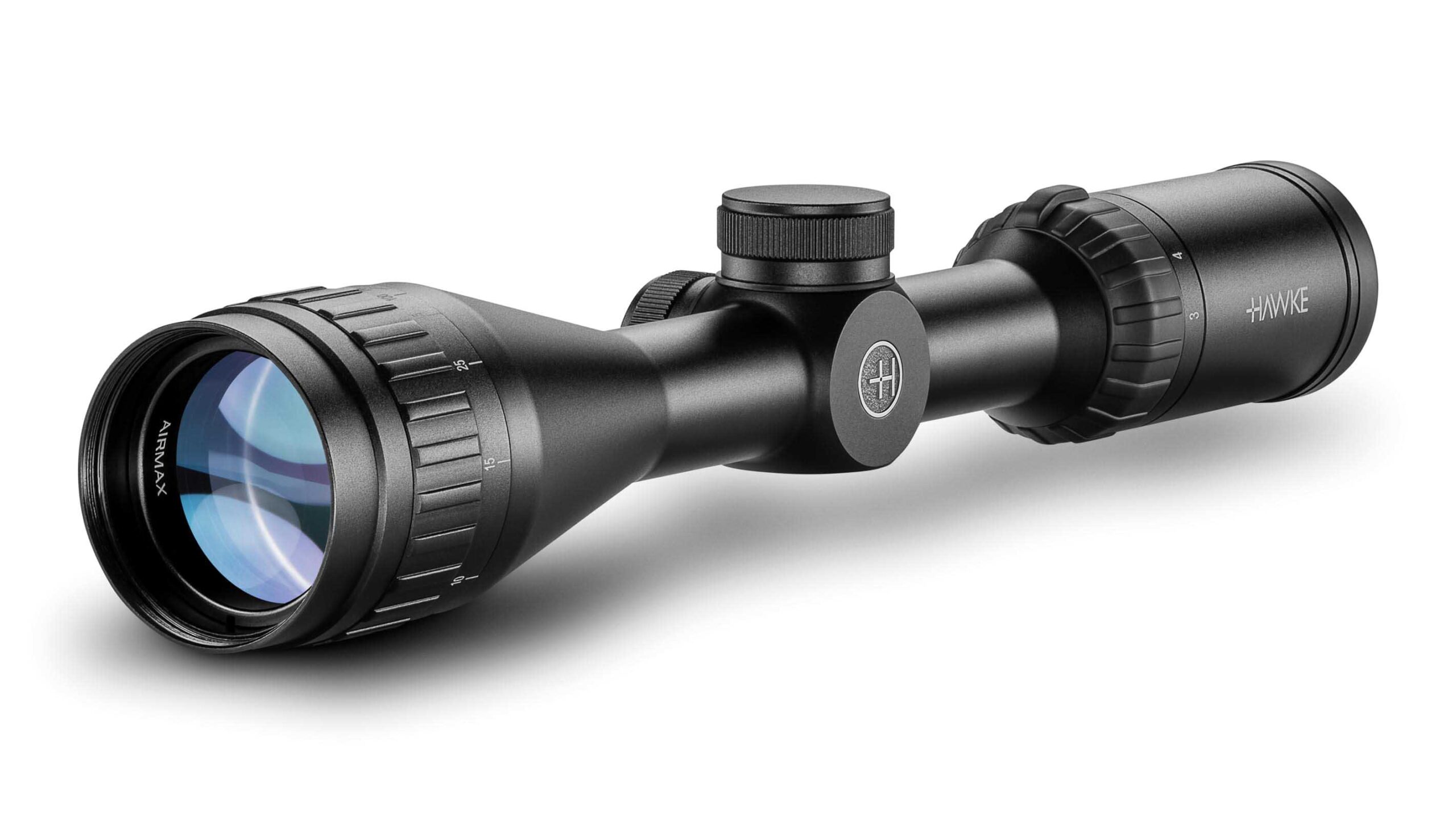

Airmax 3-9×40 AO AMX
£228.00
1 in stock
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Wide Angle
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Magnification
3 – 9x
Reticle
AMX
Optical System
System H2
Objective Lens
40mm
Parallax
Adjustable Objective
Focal Plane
SFP (Second Focal Plane)
Scope Tube
1 Inch
Field of View
37.2 – 13.6ft @100yds
12.4 – 4.5m @100m
Field of View
7.1 – 2.6°
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds – ∞
9m – ∞
Exit Pupil
0.52 – 0.17″
13.3 – 4.4mm
Click Value
1/4 MOA
Elevation Turret Clicks (max)
80 MOA
Windage Turret Clicks (max)
80 MOA
Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated – 16 Layers
Length
12.2in
310mm
Weight
18.3oz
519g
Turret Type (Elevation)
Capped. Low-Profile. Resettable
Turret Type (Windage)
Capped. Low-Profile. Resettable
Illumination Control
–
